HDPE Krah Pipe

  • Category: HDPE Krah Pipe
  • Product name:Sn4 Sn8 Sn10 Sn12.5 HDPE Winding Structure Wall Plastic Krah Pipe
  • Working pressure: PN4-PN12.5
  • Size: id300 to id40000
  • Standard: BS EN 13476
  • INQUIRY   EMAIL
Products Description

Krah pipe is a kind of special-shaped pipe with smooth inner wall and spiral strengthening outer wall. Spigot and socket Krah pipe
normally divided into B type and C type, which are green and flexible, use high density polyethylene as raw material, produced by
filament winding process in the states of hot-melt, gradually cooled by means of rolling air cooling and spraying in thermal state
and before demolding. It is available for a wide range of diameters from 300 mm to 3000 mm, can be connected by socket-joint. Krah
pipe has all the features: high strength, light weight, corrosion resistance, no leakage, good sealing and easy construction etc.,
be widely used in drainage projects.



Specification
Nominal OD
(dn)
Min. mean diameter
The wall thickness of the min. layer pressure
Min. inner wall thickness
mm
mm
mm
mm
200
196
1.5
1.7
300
294
1.7
2
400
392
2.3
2.5
500
490
3
3
600
588
3.5
3.5
700
673
4.1
4
800
785
4.5
4.5
900
885
5
5
1000
985
5
5
1100
1085
5
5
1200
1185
5
5
1300
1285
6
5
1400
1385
6
5
1500
1485
6
5
1600
1585
6
5
1700
1685
6
5
1800
1785
6
5
1900
1885
6
5
2000
1985
6
6
2100
2085
6
6
2200
2185
7
7
2300
2285
8
8
2400
2385
9
9
2500
2485
10
10
2600
2585
10
10
2700
2685
12
12
2800
2785
12
12
2900
2885
14
14
3000
2985
14
14
Physical performance:
Item
Product Parameter
Ring stiffness (KN/m 2 )
SN4 ≥ 4, SN8 ≥ 8, SN16 ≥ 16
Impact performance
TRL ≤ 10%
Ring flexibility
No delamination, no cracking, no buckling deformation, no dents, no bulges
Creep rate
≤4
Tensile strength of Seams
DN/ID ≤ 300
400 ≤ DN/ID ≤ 500
600 ≤ DN/ID ≤ 700
DN/ID ≥ 800
The Minimum endurable tensile force (KN)
≥ 380
≥ 510
≥ 760
≥ 1020
Oven test
No delamination, no cracking on the seams
Advantages


1. Nontoxic
2. Corrosion resistance
3. No Leakage
4. Higher flow capacity
5. Convenient for construction and installation
6. Lower
system and maintenance costs
7. Longevity of working life
8. Carat Tube is recycled and Environment-friendly

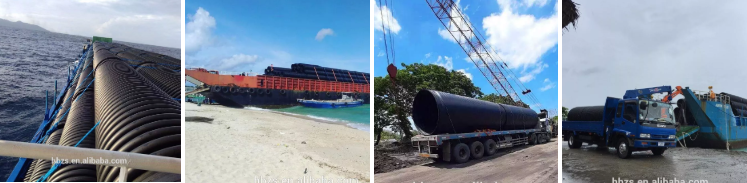

Product package
Applications


1.Underground drainage, sewage, aeration and others in municipal construction areas;

2.Drainage for railway, highway, court and others in road engineering areas;
3.Nuclear power plants, steel mills, power plants, petrochemical plants, docks, stations;
4.Tidal flat, saline pool, riverbed, soft foundation expansive soil, earthquake zone and others in adverse environmental areas.

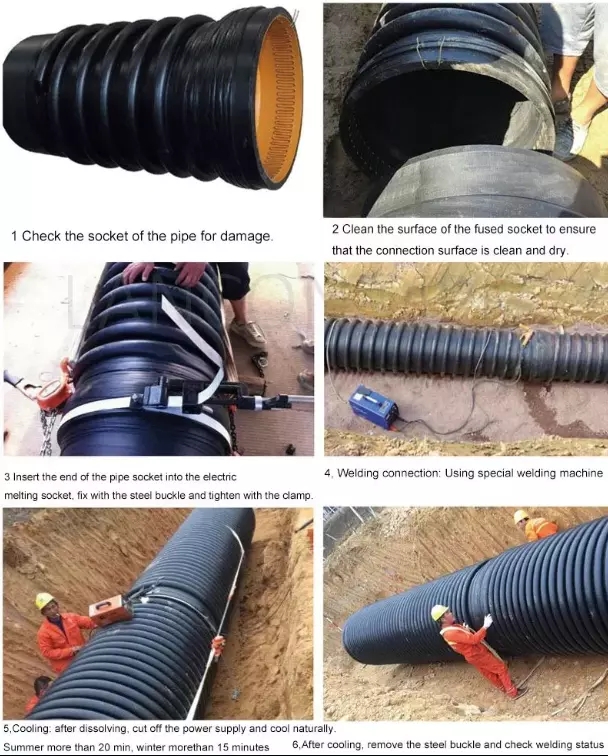

Installation Instructions







FAQ:

Q1. Are you trading company or manufacturer?
A: We are professional manufacturer and welcome to your visit at any time.
Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock, which depends on your quantity and can be negotiable.
Q3: Do you provide samples?
A: Yes, of course, samples is available for small quantity we can supply for free.
Q4: What is your terms of payment? A: L/C, Western Union, T/T 30% in advanced, balance before shipment.
Q5: For pipe fittings, what do you do mainly?
A: For fittings, coupling(socket), elbow,tee,reducer,union, valve,cap,some electrofusion fittings and compression fittings.
Q6: Can i have my own logo on the product?
A: Yes, sure, you just send us your drawing, we'll make logo for you, and before production we will confirm with you in advance.
Q7: Can i request to change the method of package and transportation?
A: Yes, the packing and trasportation can be as per your requirements.
