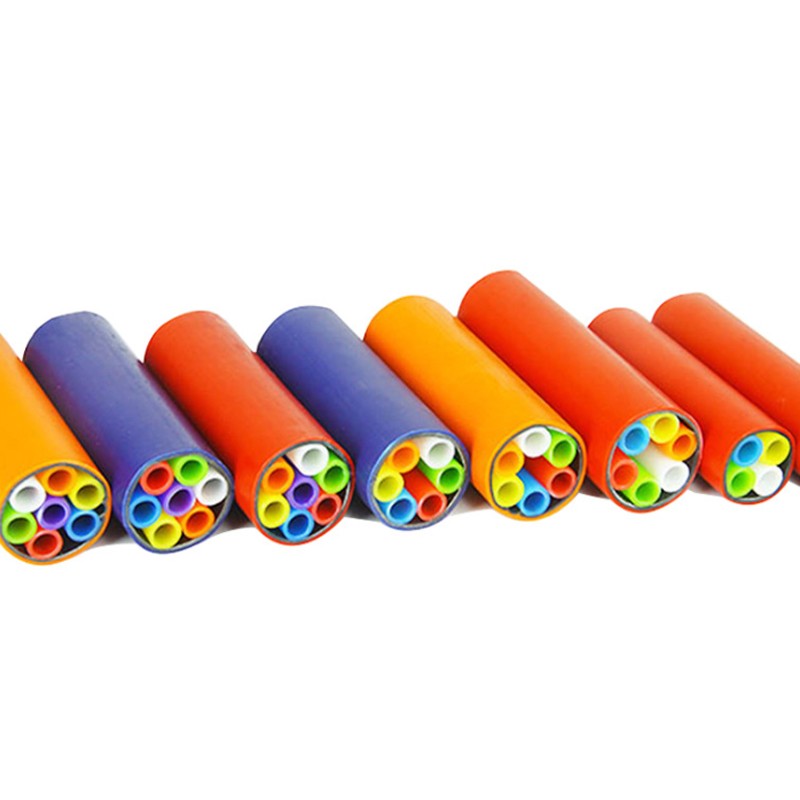

HDPE MICRO DUCT & TUBE BUNDLE

  • Category: HDPE PIPES
  • roduct name: HDPE 7-way mirco duct
  • Material: PE100 PE80 Polyethylene
  • Working pressure3: SDR27 - SDR11
  • Package: 20 or 40 container
  • INQUIRY   EMAIL

Product Description

Specification:Unit:mm

HDPE 14/10mm Direct Buried 7 Way Microduct with Factory Price

Microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or for indoor installation.
Microducts are characterised by heavy wall microducts and a relatively thin outer sheath. The thickness of each inner tube allows
individual tubes to be used direct bury solution.
The microducts themselves are rugged enough to protect the fiber cables inside. Micro ducts are made of HDPE and have a low
friction inner surface for best blowing performance.

OD
ID
Wall thickness
Weight
Drum size
7
3.5
1.75
0.266
2000*1100
7
4
1.5
0.247
2000*1100
10
6
2
0.430
2350*1100
12
8
2
0.531
2200*1100
14
10
2
0.631
2200*1100
16
12
2
0.736
2200*1100
20
16
2
0.929
2350*1100
Micro Duct Structure

Size Chart
INNER TUBES
Materials
HDPE (High-density Polyethylene)
Diameter
12/10mm
Color options
Red, Green, Orange, White, Blue, Brown, Gray
Inner surface
Ribbed with silicon
Layer
2
Numbers
7
OUTER SHEATH
Materials
HDPE (High-density Polyethylene)
Thickness
3.4mm (Nominal)
Diameter (min./max.)
42.8mm(1.7mm)
Color
Orange/Black

Advantages:
1). Adopt multi-machine co-extrusion, the silicon core layer is synchronously embedded in the pipe. It will be permanent lubricated and not be stripped forever
2). The friction coefficient of the inner wall is very small. Optical cable (electric cable) can be repeatedly extracted and tension in the pipe.
3). Waterproof, damp-proof, can avoid the damage by rodent animals.
4). Aging-resistant, anti corrosion of chemicals, long service with 50 years
5). Good weather resistant ability, and its suitable temperature from -40°C to 100°C.
6). Convenient in construction, save time and the project cost

Applications:
1. Developed to be the best solution of direct burial modular-tubes family, featuring a non-metallic construction.
2. A bundle of micro-or mini-tubes (regular wall size) is surrounded by dual HDPE sheath. The design makes the duct assemblies
suitable for outdoor direct buried. The microducts are optimized for best cable blowing performance Storage
Completed packages of the HDPE tube bundle on drums can be stored outdoor max. 6 months upon the date of production.


Storage temperature           -40℃ ~ +70℃
Installation temperature    -20℃ ~ +50℃
Operating temperature       -40℃ ~ +70℃
