Hdpe Pipe For Aquaculture Cage

Category： HDPE PIPES
Material: PE100
Diameter: 2m-60m,de
Use: Fish, Fish Farming
Certificate: ISO4427
INQUIRY EMAIL

Product Description

Product name:HDPE Fishing cage

Mainly Designed For Lake & Sea.
Be Able To Be Used For Harvest.
Resist Maximum to 6-10M Wave.
Still Very Strong And Working Well During Typhoon.

Aquaculture Tools Hdpe Pipe Seawater Fish Breeding Cage Culture Lantern Net For South Africa

Function:

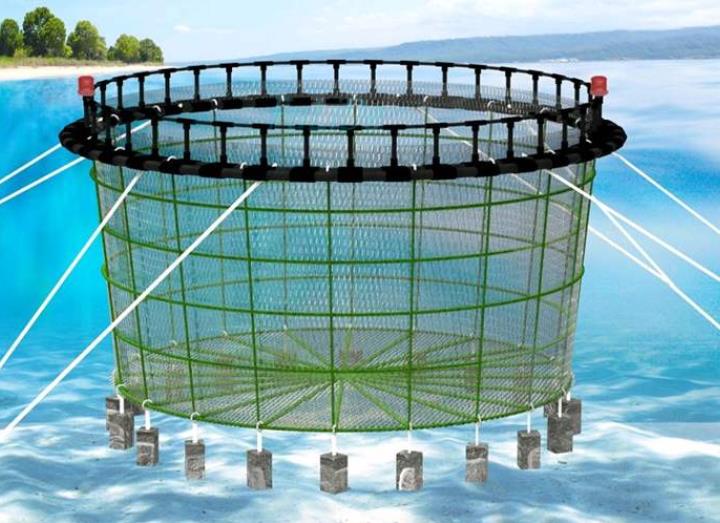

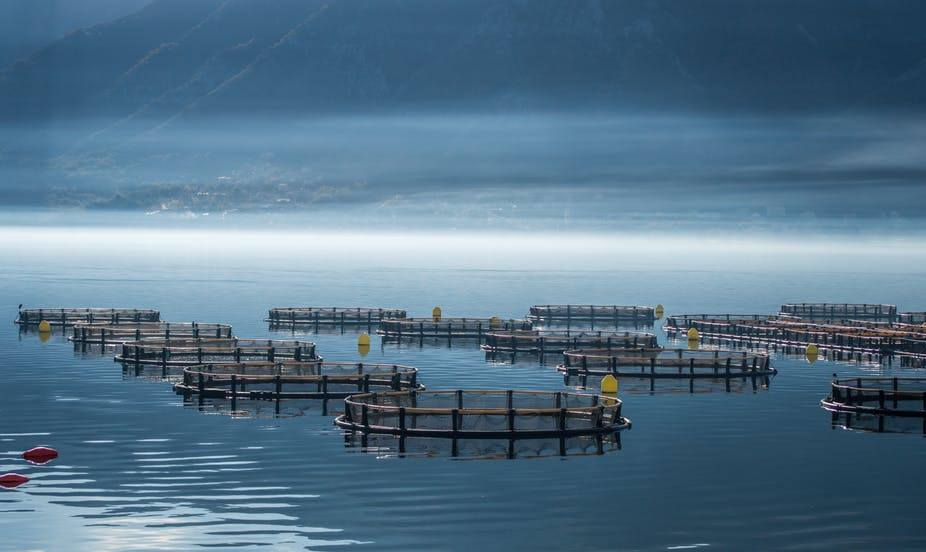

Marine cage farming system can be used in various water environments including lake, sea and river...etc.
Suitable for intensive farming.
Suitable for different species, such as Tilapia, Japanese Sea Bream, Goldlined Sea Bream, Cobia, Greater Amberjack, Blue-Banded Sea Perch, Spangled Emperor (Sand Snapper, Parrot-Fish), Snappers, Yellow-Wax Pampano, Orange-Spotted Grouper, Red Drum, Catfish, Striped bass, Bluegill sunfish, Crappie, Carp… etc.

Characteristic

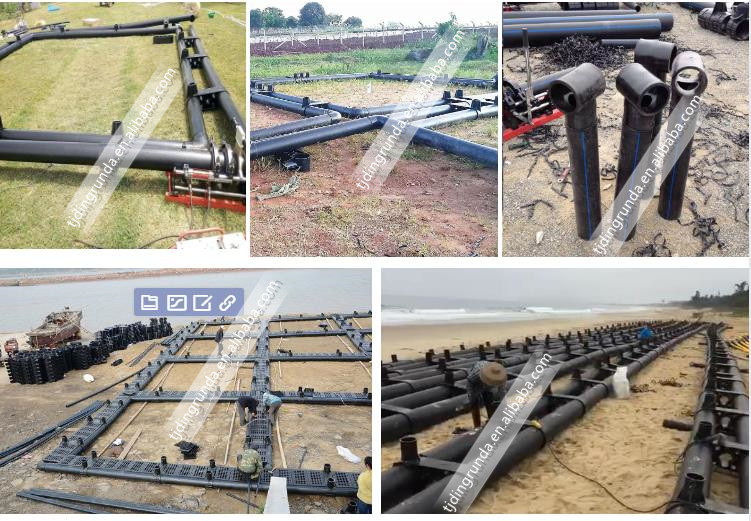

"One-Piece Injection Molded" HDPE 100 Bracket, extremely sturdy.
HDPE 100 Floating Pipe and HDPE 100 Handrail Pipe offer excellent Environmental Stress Cracking Resistance and resist deformation.
High carbon component, strong UV resistance ensures sound durability, low maintenance and investment cost.
Removable Handrail T Bar makes more easily assembling, simplified harvesting & efficient maintenance as well as resistant to corrosion.
Heavy duty standing pole. Bear heavier net weight.
All the "Round" and "Square" shape cages can be customer made.

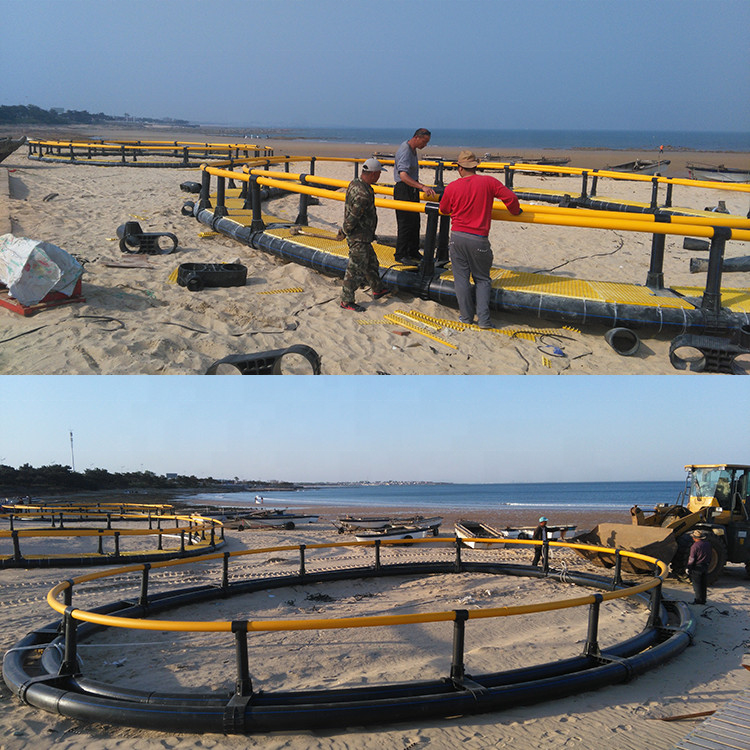

HDPE Circular Floating Cage Frame Specifications
Circumference (m)	Cage Dimeter (m)	Diameter of the floating pipe(mm)	Diameter of the stand pipe(mm)	Diameter of thehandrail pipe(mm)	Distance of the brackets(m)	Farming Area(m2)
30	10	200	90	90	2	80
40	12	200/250	90/125	90/110	2	110
50	15	250	125	110	2	180
60	20	250/315	125	110	2	310
80	25	315/355	125/140	110/125	2.0/2.5	500
100	30	350/400	140	125	2.0/2.5	700
120	40	350/400	140	125	2.0/2.5	1300
150	50	350/400	140	125	2.0/2.5	2000
200	60	400	140	125	2.5	2800
300	100	400	140	125	2.5	7800
600	200	400/450	160	140	3.0/3.5	31400
800	250	400/450	160	140	3.0/3.5	50000
1000	300	500/630	160	140	3.0/3.5	70000
We can design the cage according to your feeding area and circumstance

Square cage system is an efficient and easily organized solution for farmers delivered via the best construction technique in the industry of cage aquaculture. This has become a system with the durability that outperforms typical expectations for the square cage systems.

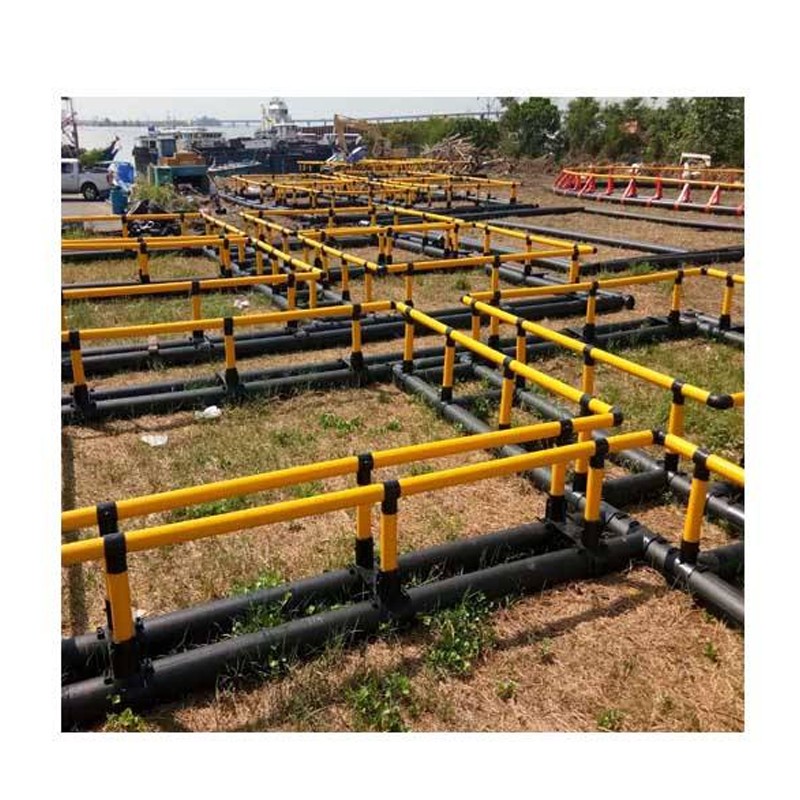

HDPE square floating cage frame specificaitons
Length (m)	Width (m)	Diameter of the floating pipe(mm)	Diameter of the stand pipe(mm)	Diameter of thehandrail pipe(mm)	Distance of the brackets(m)	Farming Area(m2)
3	3	200	90	90	2	10
4	4	200	90	90	2	15
5	5	200	90	90	2	25
6	6	200	90	90	2	40
7	7	200	90	90	2	50
8	8	200	90	90	2	65
9	9	200/250	90/125	90/110	2	80
10	10	200/250	90/125	90/110	2	100
12	12	200/250	90/125	90/110	2	150
15	15	250/315	125	110	2	225
20	20	250/315	125	110	2/2.5	400
30	30	250/315	125	110	2/2.5	900
We can design the cage according to your feeding area and circumstance
