Plastic Pipe Welding Machine

Product Description

1600 mm butt fusion welder Hydraulic type hdpe pipe welding machine

The main parameters:

Welding Size:	Dn90,Dn110,Dn125, Dn140,Dn160, Dn180,Dn200, Dn250, Dn280, Dn315 More size available
Sealing Deviation:	≤0.3mm
Temperature Control Range:	0~300℃
Temperature Error:	±5℃
Operation Pressure of the Hydraulic System:	0~6Mpa
Power:	4.85KW/220V
Heating Power:	3KW/220V
Cutter Power:	1.1KW/220V
Hydraulic Power:	0.75KW/220V

Main parts:

Application and features:

♥Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop

♥Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.

♥Removable PTFE coated heating plate with high accurate temperature control system;

♥ Electric Planning Tool with reversible double cutting edge blades.

♥Hydraulic Unit provides welding machine with compressing power

♥ Be made of Aluminum material

♥Low starting pressure ensures reliable welding quality of small pipes.

♥ Temperature Controller and Timer, easy to know the exact time and temperature.

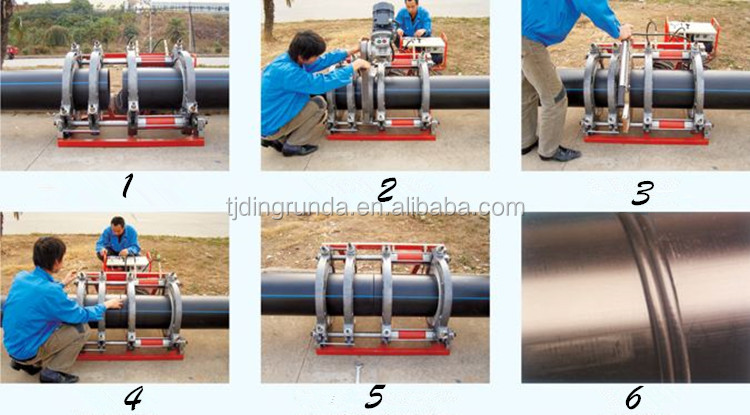

Welding process

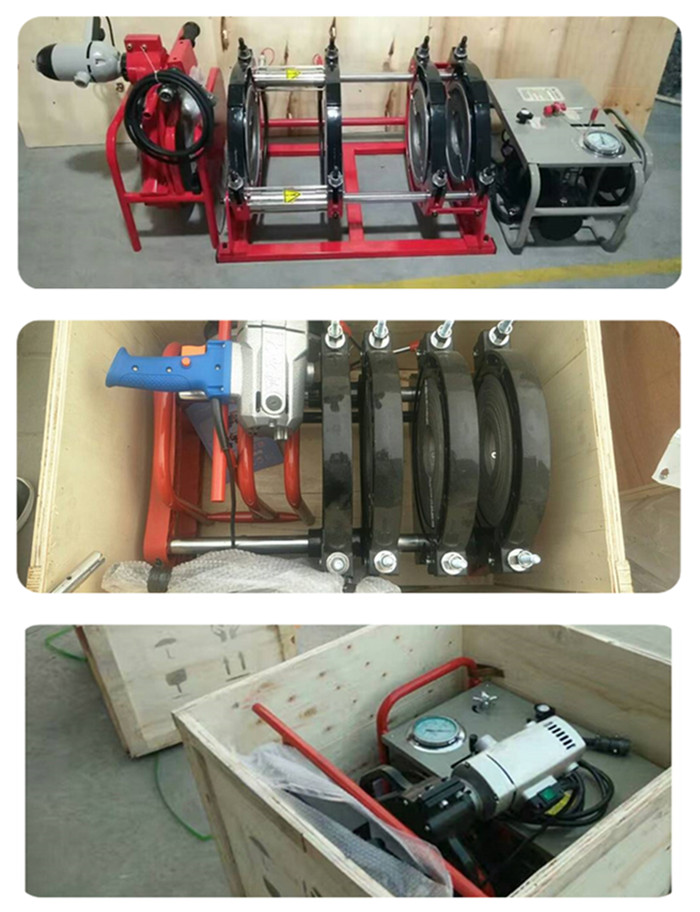

Packaging & Shipping

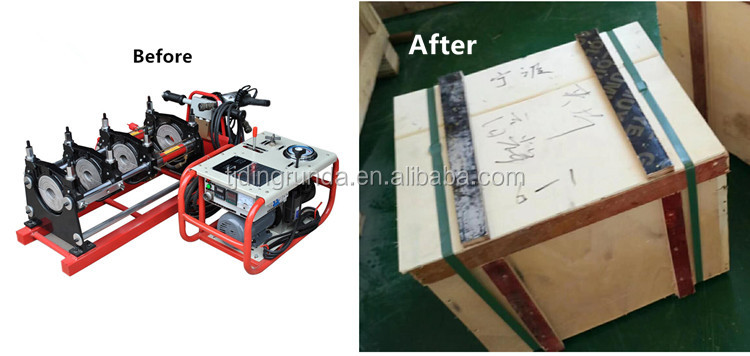

Machine are well packed in polywood cases suit for Sea freight or Air freight

Our Services

Our advantage :

Professional factory, best quality,reasonable price and best after -sales service .

we are the manufacturer, we are the source. All accessories can be supplied by ourselves.

According to the customer’s needs, our designer can design special types of welding machine. And color as customer’s request.

High output, delivery in time.

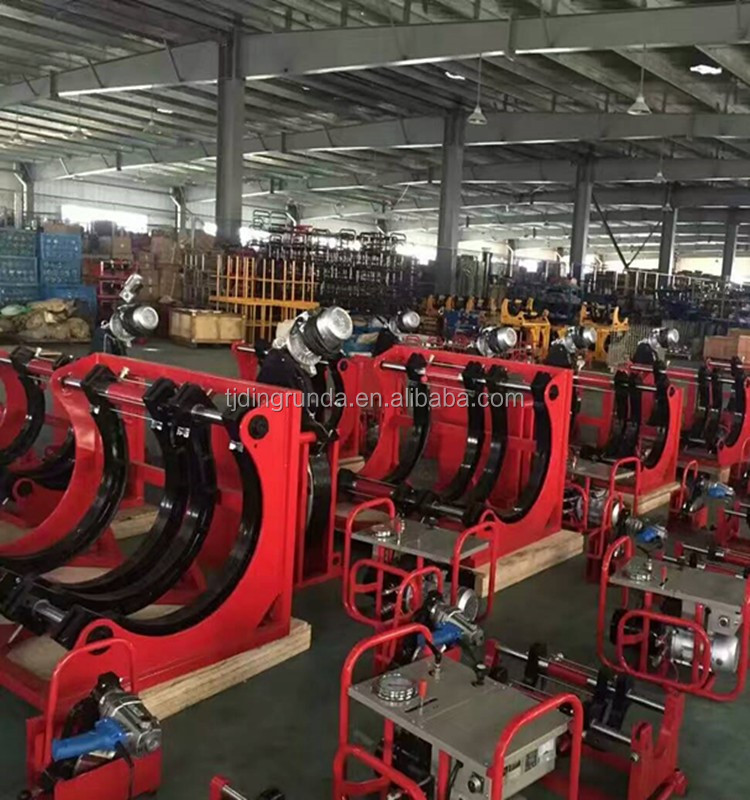

Company Information

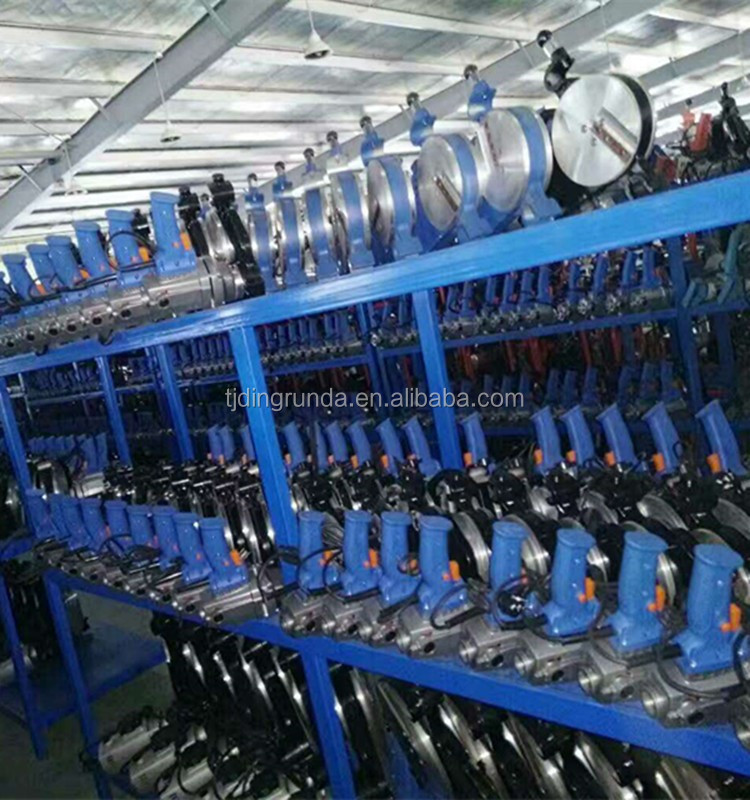

Plenty of stock

Project Site
