HDPE LDPE Waterproof Geomembrane Pond Liner

HDPE LDPE Waterproof Geomembrane Pond Liner

Category： Geosynthetic Materials
Application:Outdoor, pond, landfill, mine etc, Landfill, Fish farm pond, Roof waterproofing, swimming pool
Warranty: 3 years
Color: Black white blue or as required
Material: HDPE LDPE LLDPE EPDM EVA
INQUIRY EMAIL

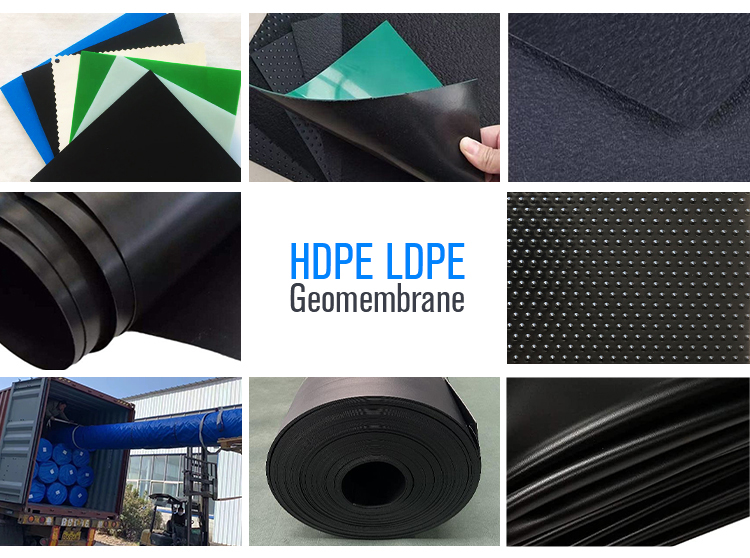

Products Description

1) Thickness: smooth surface 0.2mm - 3.0mm, textured surface 1.0-2.0mm
2) Width: smooth furface 1m-8m, rough surface 4m-8m
3) Length: 50m-200m/ roll or as requested.
4) Material: HDPE, LDPE, LLDPE
5) Color: black, white, blue, green.

6) Optional surface: smooth surface, single surface textured, dual surfaces textured.

Thickness	0.75	1	1.25	1.5	2	2.5	3
Density g/m2	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94	≥0.94
Tensile yield strength (N/mm)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
Tensile breaking strength (N/mm)	≥20	≥27	≥33	≥40	≥53	≥67	≥80
Bongation at yield(%)	≥12	≥12	≥12	≥12	≥12	≥12	≥12
Elongation at break(%)	≥700	≥700	≥700	≥700	≥700	≥700	≥700
Tear resistance(N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
Puncture strength(N)	≥240	≥320	≥400	≥480	≥640	≥800	≥960
Tensile load stress cracking	≥300	≥300	≥300	≥300	≥300	≥300	≥300
Carbon black content(%)	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0	2.0-3.0

Features:

1) Good physical and mechanic performance
2) High tearing resistance, strong deformation adaptability
3) Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
4) Good adaptability to high and low temperature, non-toxicity, long service life
5) Good waterproof, drainage, anti-seepage and damp proof effects
6) Complete width and thickness specifications, low cost and easy installation.

Benefits:

* The most chemically resistant member of the polyethylene family due to its dense configuration.
* Field welded with hot wedge welders and extrusion welders. These factory quality welds are virtually stronger than the sheet itself.
* The best QC-QA testing capabilities in the marketplace.
* No need to cover the liner because it is UV stable and cost-effective.
* Available in roll stock and come in varying thicknesses ranging from 20 to 120 mil depending on your requirements.

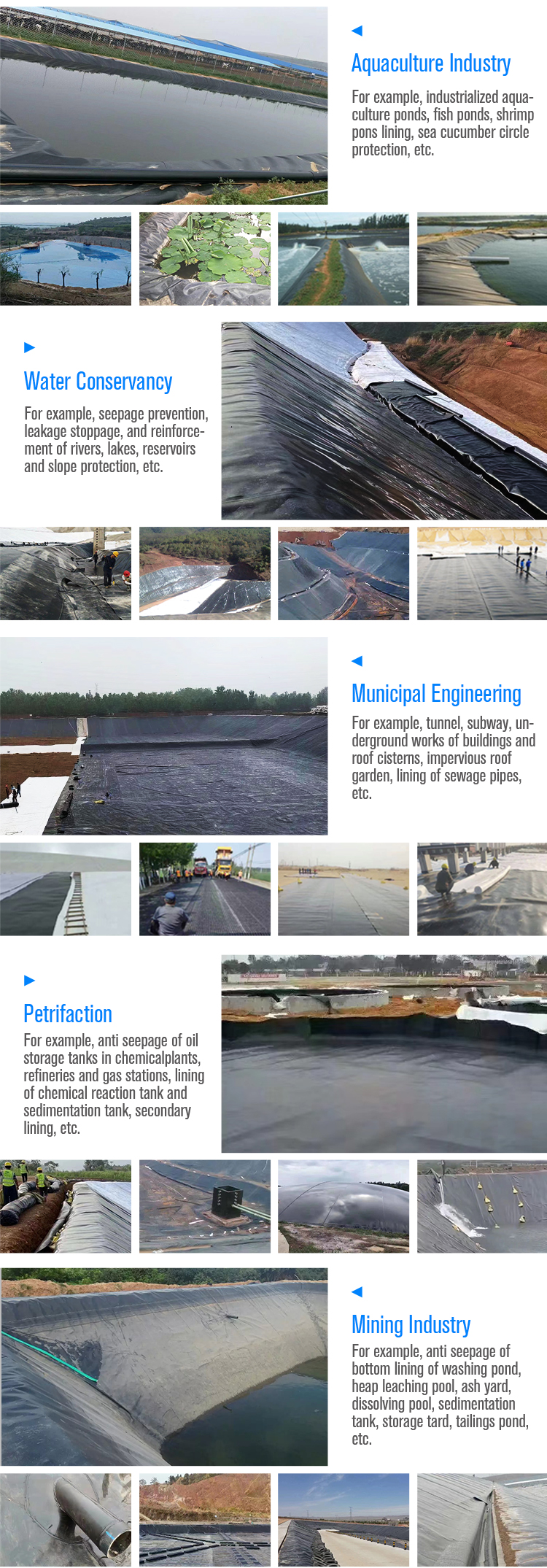

Product Application
